This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.
अदायगी की शर्तें :
Chinaउद्गम देश :
1200pcs/hourरंग :
RAL7035डिलीवरी_पोर्ट :
Fujian xiamenडिलीवरी की तारीख :
3-5 working daysमात्रा :
5000न्यूनतम आर्डर राशि :
1 Setतौलना :
1Tmodel :
FLD-XM-21Packing :

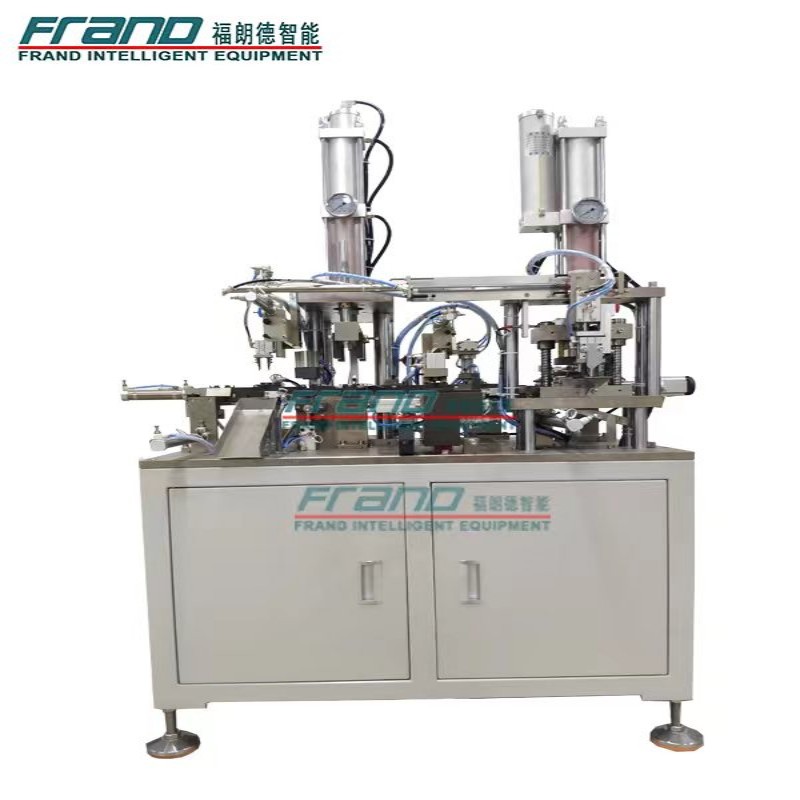

Wooden BoxAmerican head piercing assembly machine
This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.
• WORKFLOW
STEP1: The steel belt is fed accurately by servo motor, the length can be set, cut and formed by the mold.
STEP2: The hoop shell is automatically loaded by the vibrating plate, assembled with the formed steel strip, and riveted.
STEP3: After completing the assembly of the product, the material is cut.
• SPECIFICATION
Product name | Hose clamp assembly machine |
Size |
1200mm(length)*1700mm(width)*1800(height) |
Weight |
1Ton |
Working area |
3000mm(length)*3000mm(width) |
Strength |
AC220v,50HZ |
Pressure |
0.5Mpa-0.7Mpa(72.5-101.5PSI) |
Efficiency |
1300pcs/hour |
Service |
One year |
